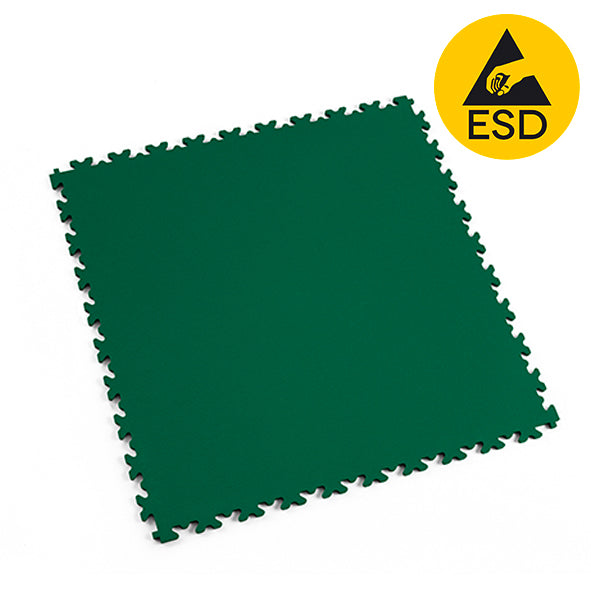

ESD conductive, dissipative and antistatic PVC tiles for ALL INDUSTRY SUPPORTS.

Grounding kit and carbon strip create a safe, conductive floor that can be used as a primary floor.

Prices include VAT and are per m².

• Thickness:
  • 4 mm / Size: 65.3 x 65.3 cm
  • 7 mm / Size: 51 x 51 cm
• Colors: Graphite (RAL 7015) or Light Grey (Ral 7045)
• Non-slip : R10
• Hardness : 92 Shore A
• Weight : 9 .6 kg/m².
• Electric resistance : < 10^9 Ω (ESD)

MOSAIK PVC ESD tiles for ALL INDUSTRIAL SURFACES. Grounding and carbon strip kit creates a safe, conductive floor that can be used as a primary floor.

• 4-wheel forklift: up to 2.5 tonnes
• 3-wheel forklift (rubber wheels) up to 1.5 tonnes
• Hand pallet truck up to 1.5 tonnes
• Electric pallet truck up to 1 ton

Accessories :

• Grounding Kit
• ESD ribbon
• ESD edges
• ESD angles

Our conductive PVC tile floor incorporates specially developed raw materials to prevent the accumulation of electrical charges. Combined with copper ribbons previously installed on the floor, it carries them to an end tile. This in turn is connected to the floor via our grounding kit, allowing it to be discharged to prevent electrostatic discharge.

Interlocking tiles are quick and easy to install, providing long-lasting, economical and aesthetic protection for your floor.

Main parameters of PVC ESD tiles :

• The ESD range is designed for rooms requiring electrostatically conductive flooring.
• Areas of application: electrotechnical component manufacturing facilities, automotive industry, hazardous areas, electrical distributors, data centers, laboratories, public health and others
• Complies with the requirements of IEC 61340-4-1
• Maximum mechanical strength prevents surface damage caused by handling techniques or massive point loads
• Piece-by-piece assembly possible without service interruption
• Homogeneous, highly resistant 100% PVC material.
• Easy surface cleaning and maintenance
• Durable dovetail system, guaranteed for up to 12 years, 25-year service life
• We've been making our products in the Czech Republic for 30 years, with an emphasis on ecology.
